Vendor: Dlink
Device name: DI-604 - 4-port Ethernet Broadband Router (Revision comparison)
FCC ID : ???
OEM vendor: Global Sun Technology (Taiwan)

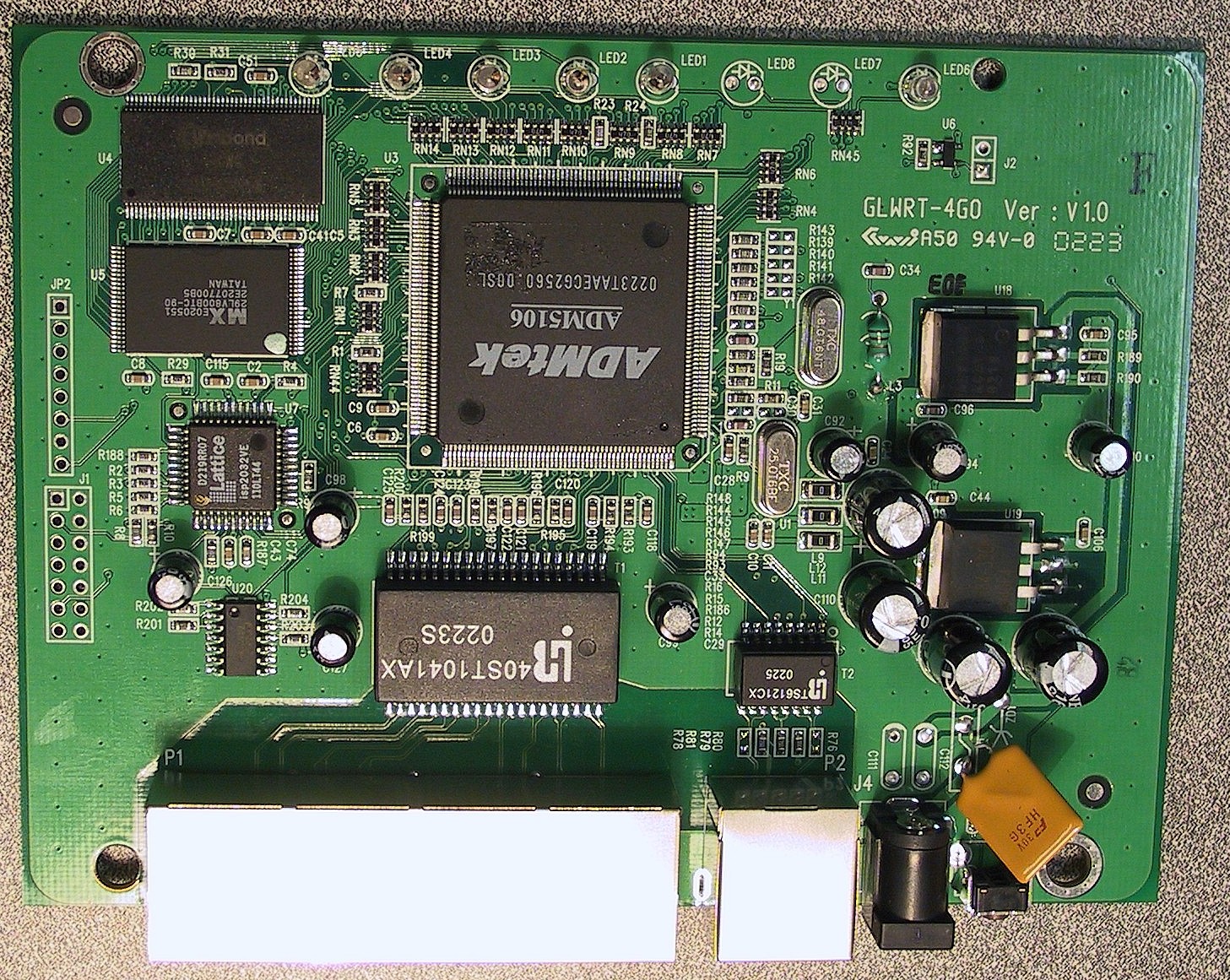

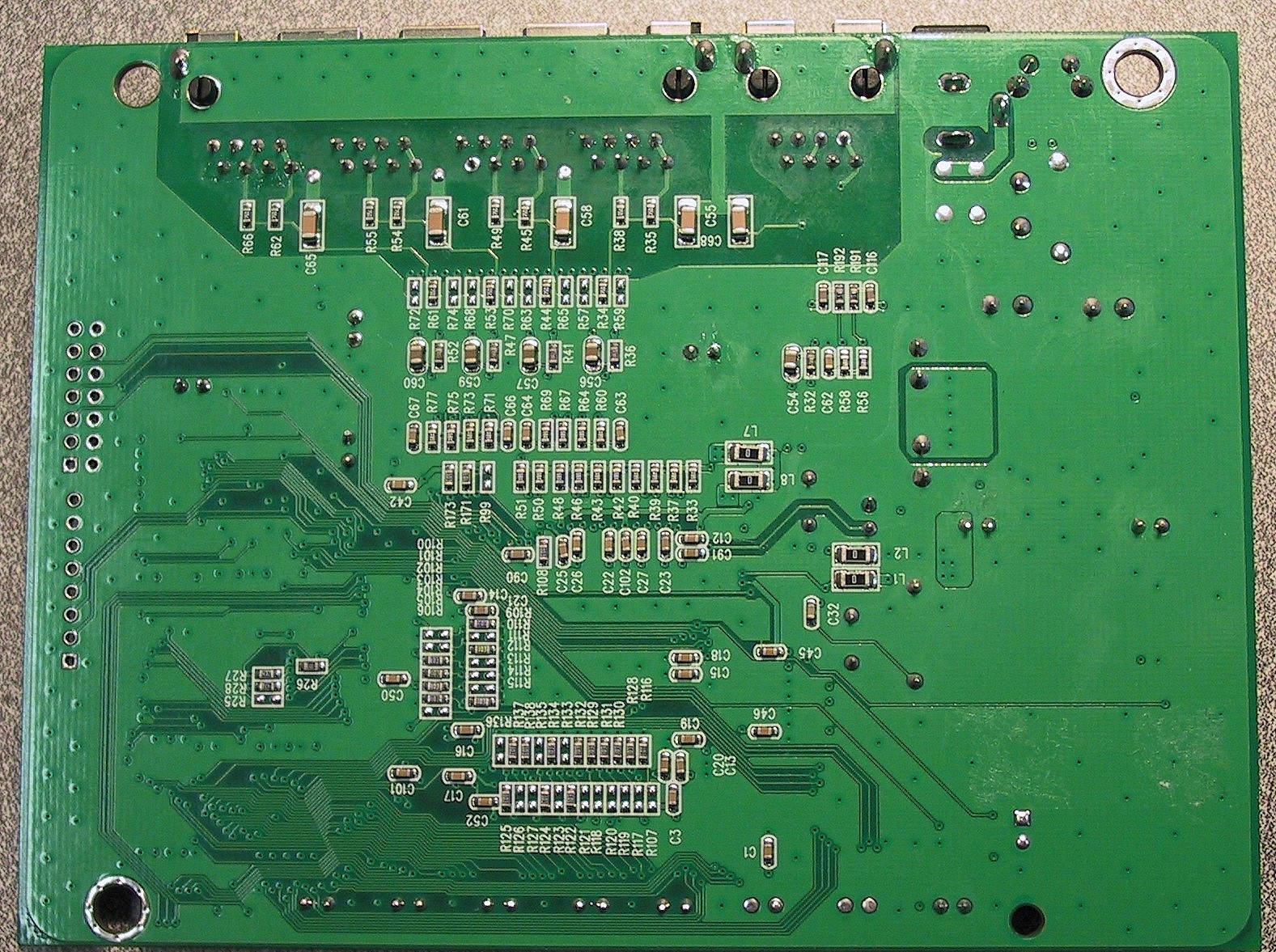

OEM name/PCB:GLWRT-4GO Ver : V 1.0
The DI-604 has an integrated 4-port switch with 10/100 Ethernet ports for directly connecting up to four computers.
Build-in software supports Network Address Translation, simple firewaling and convinient web-based configuration interface.
IPSEC or any other VPN and encription functionality is not implemented.
| CPU | ARM7TDMI based (no-mmu) CX84200 by Conexant (ADM5106 by ADMtek) The ADM5106 SoC have and ARM7TDMI core integrated with seven-port switch engine, five-port physical layer (PHY), two UARTs, USB. |
| Flash memory | MX 29LV800BTC-90 (by AMD ?? Macronix??) 3 Volt Fast Boot Block Flash Memory (512Kbit x 16) Total : 1 Mbyte Macronix Specification AMD Specification |
| SDRAM memory | Winbond W986432DH-6 512k x 4 banks x 32 bits SDRAM Total: 8 Mbyte Specification |
| PLD | Lattice isp2032VE programmable logic Specification |
| 1 | vddh ( positive 3.3) | 2 | vss (ground) |
| 3 | nTRST | 4 | vss (ground) |
| 5 | TDI (pin 161) | 6 | vss (ground) |
| 7 | TMS (pin 164) | 8 | vss (ground) |
| 9 | TCK (pin 165) | 10 | vss (ground) |
| 11 | TDO (pin 162) | 12 | nRESET ( not implemented ??) |
| 13 | vddh (positive 3.3) | 14 | vss (ground) |
| 1 | vddh (positive 3.3v) |
| 2 | SDO/IN1 (pin 24) |
| 3 | SDI/IN2 (pin 14) |
| 4 | nISPEN (pin 13) |
| 5 | -------- |
| 6 | MODE (pin 36) |
| 7 | vss (ground) |
| 8 | SCLK (pin 33) |
